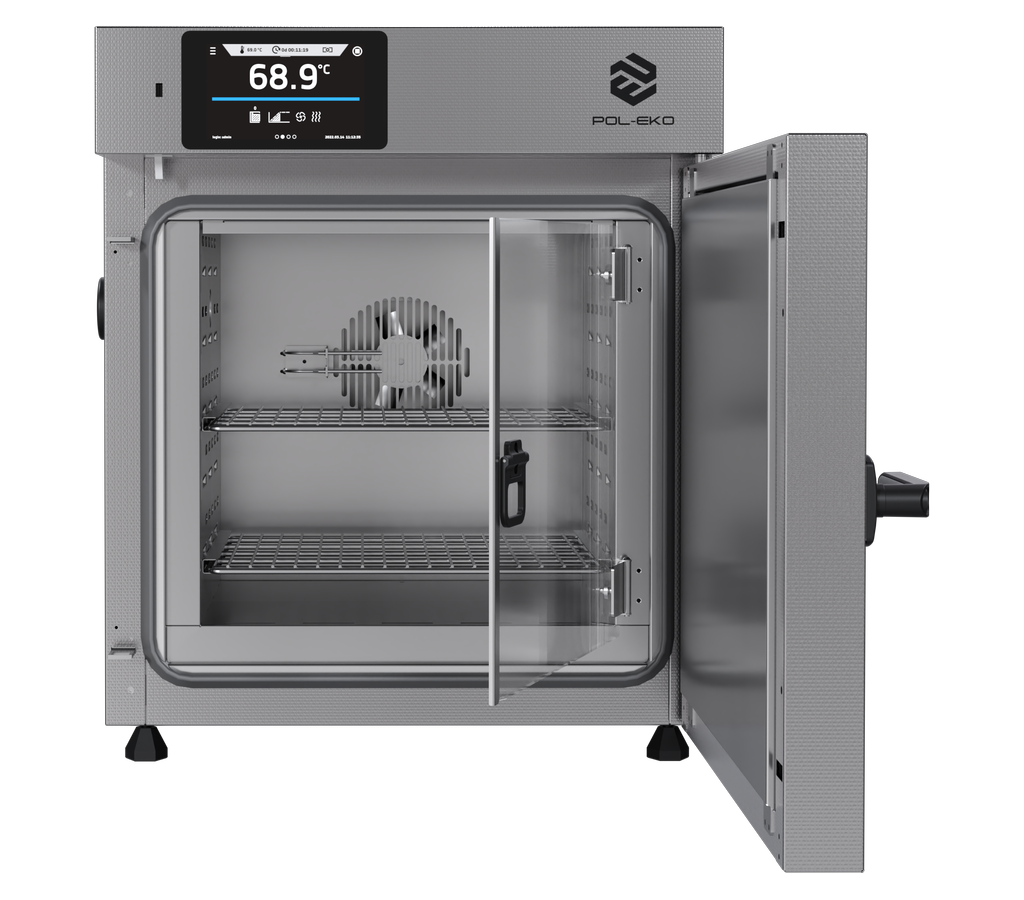

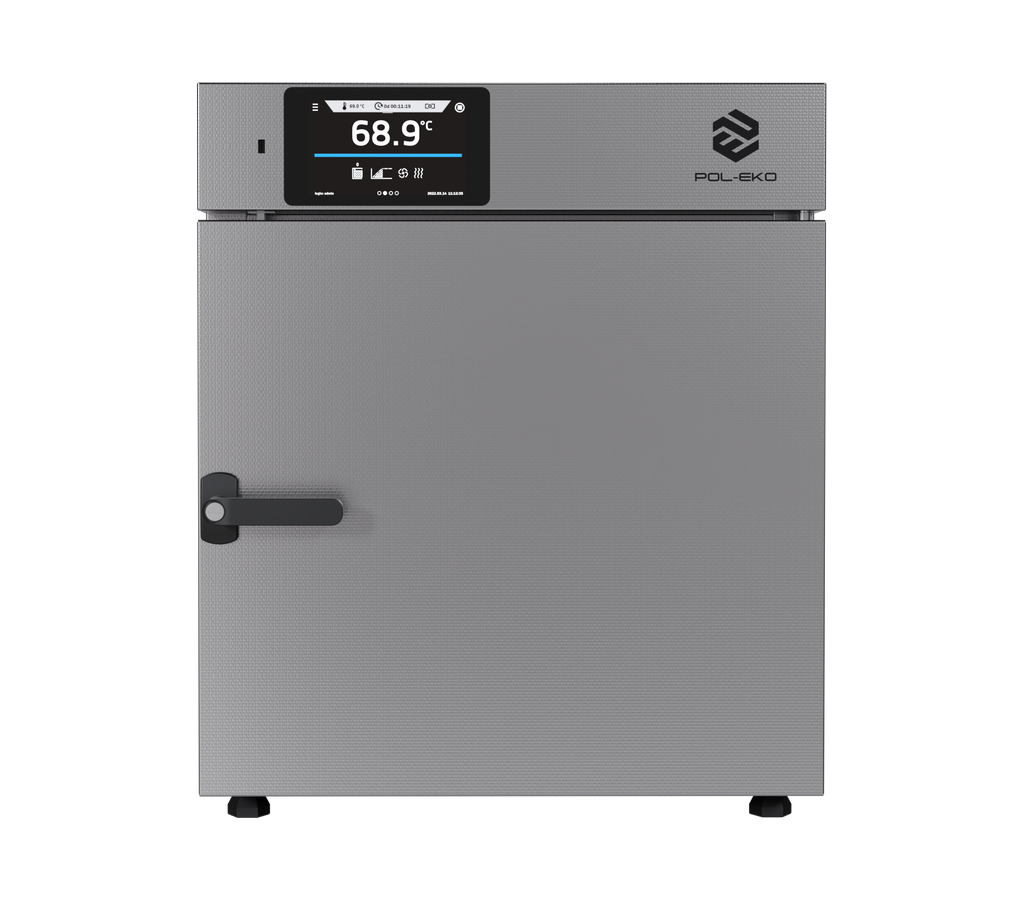

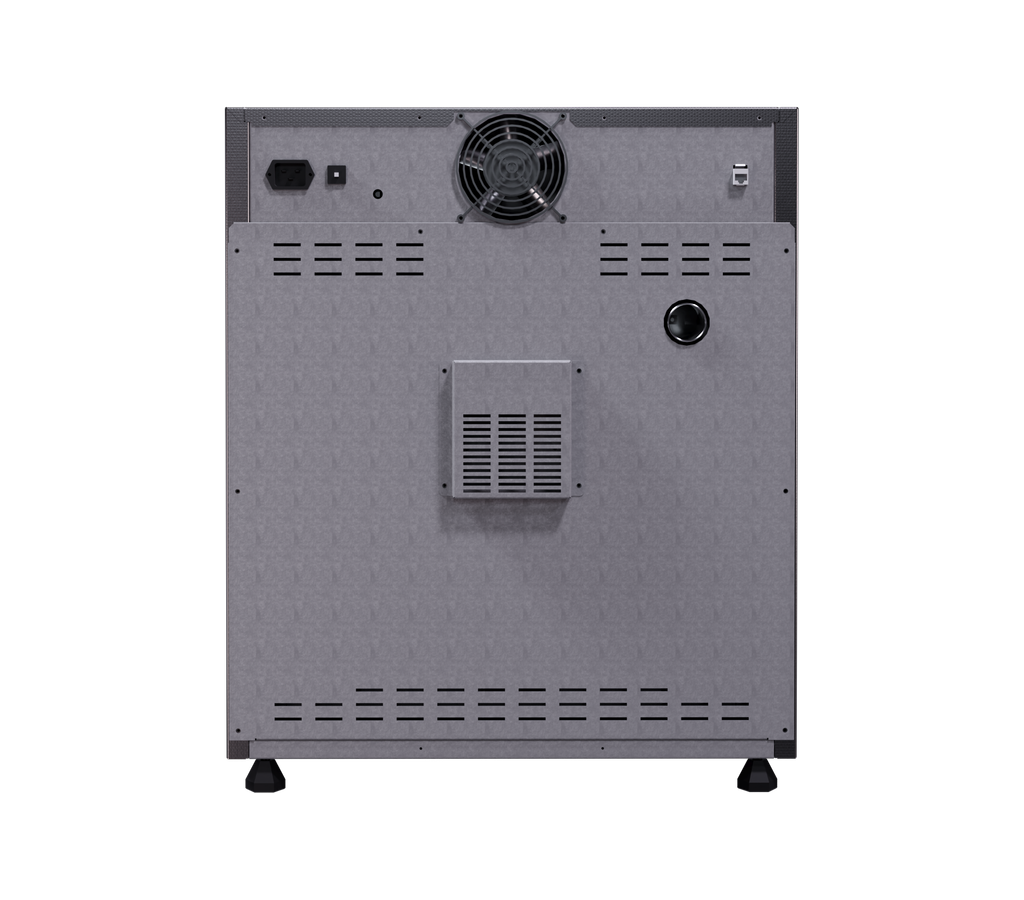

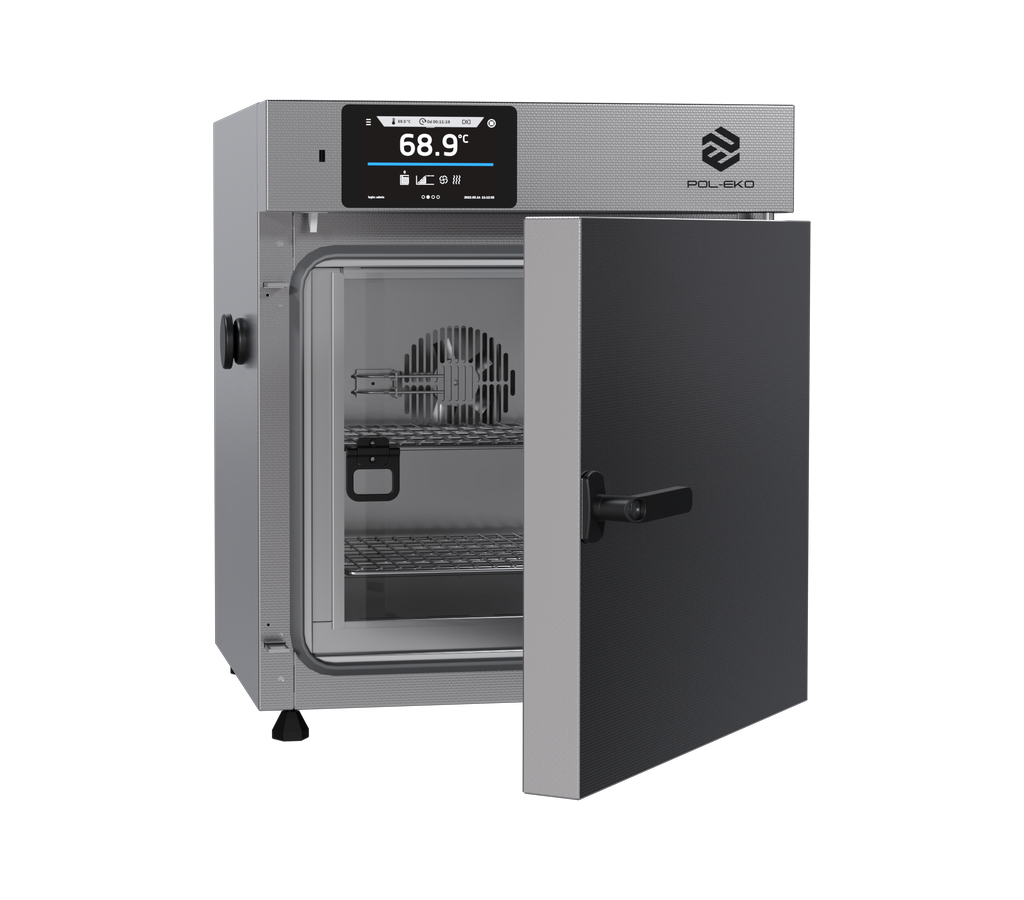

Laboratory Incubator CLW 53 IG SMART PRO NA
Compact 56 L laboratory incubator with forced air convection, precise PID temperature control and a 7” touchscreen. Designed for reliable incubation ambient +5 °C to 100 °C , ideal for routine laboratory applications requiring stability and ease of use.
Key features:
- Chamber volume: 56 L (2.0 cu ft)
- Temperature range: ambient +5 °C to 100 °C (ambient +41 °F to 212 °F)
- Temperature resolution: 0.1 °C
- Air convection: forced
- Controller: microprocessor PID
- Display: 7” color touchscreen LCD
- Overtemperature protection: Class 3.1 DIN 12880
- Chamber material: AISI 304 acid-resistant stainless steel interior
- Housing: linen-finish stainless steel
- Access port (Ø30 mm) with silicone plug on the left wall
- Shelves: 2 standard / up to 5
- Power supply: 120V 60 Hz, 500 W
- Certifications: UL, CSA, CE
- Manufacturer / warranty: POL-EKO® / 24 months
Temperature Range
ambient +5 °C to 100 °C (ambient +41 °F to 212 °F)
Chamber volume
56 L (2.0 cu ft)
Controller
SMART PRO
TECHNICAL DATA
| Parameter | Value |
|---|---|
| air convection | forced |
| chamber volume | 56 L (2.0 cu ft) |
| working capacity | 56 L (2.0 cu ft) |
| controller | Microprocessor PID controller with graphical LCD display |
| display | 7" full-color touchscreen |
| TEMPERATURE | |
| temperature range | ambient +5 °C to 100 °C (ambient +41 °F to 212 °F) |
| temperature resolution every … | 0.1 °C |
| temperature fluctuation at 37°C* | ±0.1 °C |
| temperature variation at 37°C* | ±0.3 °C |
| temperature protection | class 3.1 to DIN 12880 |
| CHAMBER | |
| door type | solid external door with additional internal glass door |
| interior | AISI 304 acid-resistant stainless steel interior (DIN 1.4301 / 0H18) |
| housing | linen-finish stainless steel |
| number of doors | 1 |
| shelves (standard / max) | 2 / 5 |
| maximum shelf load (1) | 25 kg (55.1 lbs) |
| maximum unit load | 40 kg (88.2 lbs) |
| weight | 50 kg (110.2 lbs) |
| ELECTRICAL PARAMETERS | |
| electrical | 120 V 60 Hz |
| power supply | 500 W |
| over-voltage category | II according to IEC 61010-1 |
| installation environment / IP | Indoors only / IP 20 according to IEC 60529 |
| pollution degree | II according to IEC 61010-1 |
| certificates | UL, CSA, CE |
| warranty | 24 months |
| manufacturer | POL-EKO® |
all the above technical data refer to standard units (without optional accessories)
* - fluctuation measured in center of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max - T average min ) / 2
1 - on uniformly loaded surface
* - fluctuation measured in center of the chamber; in space, variation (K) calculated for chamber as:
K= +/- (T average max - T average min ) / 2
1 - on uniformly loaded surface

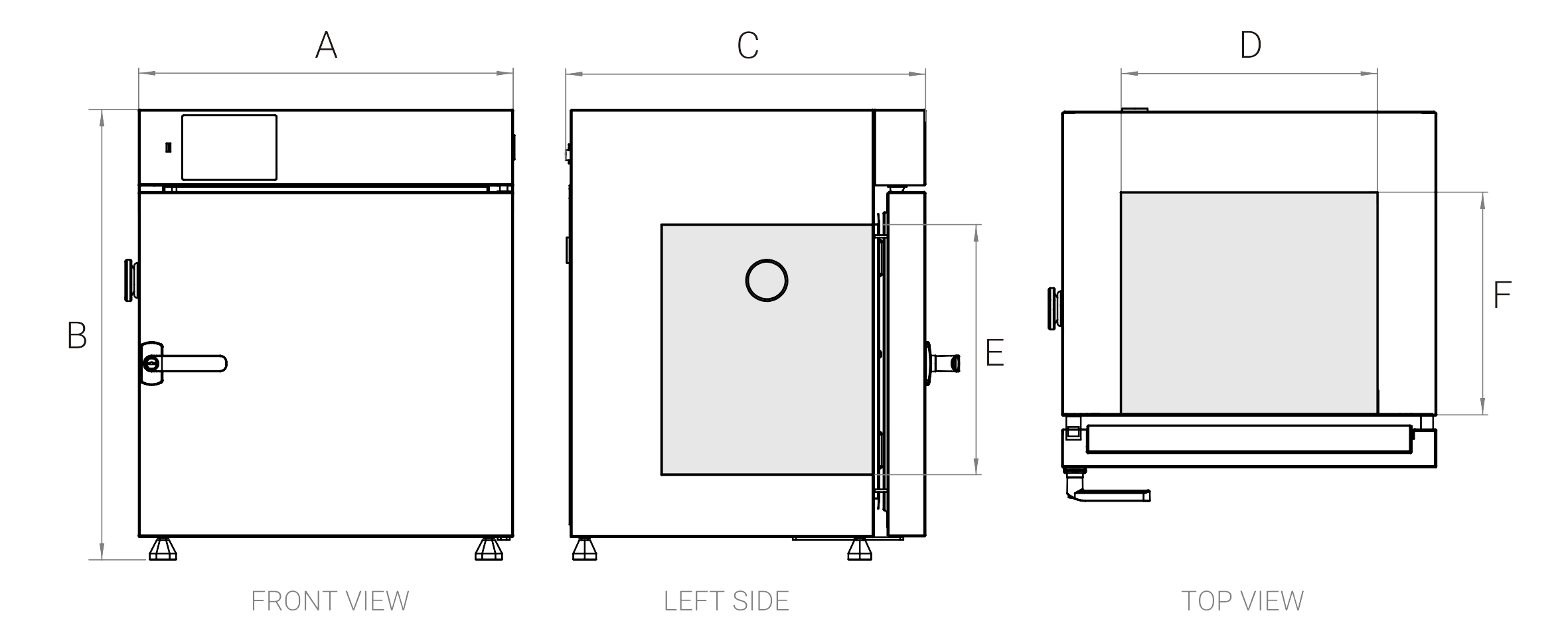

DIMENSIONS
| Parameter | Value |
|---|---|
| overall dimensions | |
| width A | 599 mm (23.6 in) |
| height B | 710 mm (28.0 in) |
| depth C | 635 mm (25.0 in) |
| internal dimensions | |
| width D | 403 mm (15.9 in) |
| height E | 390 mm (15.4 in) |
| depth F | 350 mm (13.8 in) |
| diameter of the air flap | 40 mm (1.6 in) |
All dimensions refer to standard units (without optional accessories).
Overall depth doesn’t include 50 mm (1.97 in) of power cable, the width does not include the 20 mm (0.79 in) of access port’s silicone plug.
Possibility of changing the shelf position every 70 mm (2.76 in).

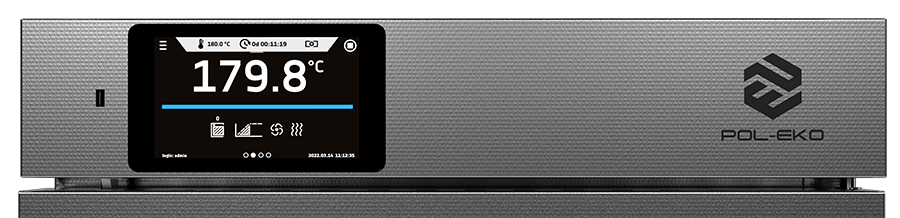

CONTROLLER
| Parameter | SMART PRO |
|---|---|
| Display | 7" touchscreen |
| Network | LAN and Wi-Fi |
| USB | YES data log storage, event log storage, program upload |
| Keyboard | Alphanumeric |
| Languages | PL, EN, DE, CZ, IT, PT, UA, ES, FR |
| Main screen | Dashboard (all key data visible on a single main screen) |
| Users | 5 |
| User roles | User / Admin / Super Admin |
| Programs | 40 |
| Program name | Custom |
| Priority | Parameters, time |
| Segments | 100 |
| Schedules | 10 schedules |
| Data log | Maximum 10,000 measurement records stored for up to 12 months |
| Event log | YES |
| Statistics | YES – from each segment and program cycle |
| Quick Note | Ability to enter custom text messages |
| Graph | YES |
| Device name | Editable |
| Alarm Bar | YES |
| Quick Change | YES |
| PC software | LabDesk |
| CFR software | LabDesk CFR (optional) |
Options And Accessories
Below are available options and accessories for this model.
Stainless steel wire shelf INOX
wire stainless steel shelf for CL/SL 53 and SL 75 with slide rails, dimensions: 392 x 310 mm (15.4 x 12.2 in), maximum shelf load: 25 kg (55.1 lbs)
Perforated shelf
perforated stainless steel shelf for CL/SL 53 and SL 75, dimensions: 392 x 310 mm (15.4 x 12.2 in), with slide rails, maximum shelf load: 25 kg (55.1 lbs)
Reinforced shelf
reinforced stainless steel wire shelf for CL/SL 53 and SL 75, with slide rails, dimensions: 392 x 310 mm (15.4 x 12.2 in), maximum shelf load: 50 kg (110.2 lbs)
Base on casters
powder-coated base on casters for CL/SL 53, 800 mm (31.5 in) high
Base on casters INOX
stainless steel base on casters for CL/SL 53, 800 mm (31.5 in) high
Table with casters
powder-coated table with casters for CL/SL 53, 800 mm (31.5 in) high
Table with casters INOX
stainless steel table with casters for CL/SL 53, 800 mm (31.5 in) high
LabDesk software
LabDesk software for temperature monitoring of POL-EKO thermostatic equipment, available fot SMART (optional) and SMART PRO (standard) versions. Per-unit license; includes memory stick with software, dongle, and 3 m (9.8 ft) LAN cable. NOTE: SMART controller requires a dongle.
Calibration 5 points 1 shelf
Calibration at 5 points (corners + center) on one shelf at one selected temperature from −40°C to +200°C for new POL-EKO equipment, carried out in the POL-EKO Measurement Laboratory member of ILAC.
Calibration 5 points 2 shelves
Calibration at 5 points (corners + center) on two shelves simultaneously at one selected temperature from −40°C to +200°C for new POL-EKO equipment, carried out in the POL-EKO Measurement Laboratory member of ILAC.
Calibration 9 points of the chamber
Calibration at 9 points (corners + center) at one selected temperature from −40°C to +200°C for new POL-EKO equipment, carried out in the POL-EKO Measurement Laboratory member of ILAC.
Accessories
Akcesoria i opcje dodatkowe. (Przykładowa treść — z DB będzie lista + ceny/pliki)
Calibration certificate
Factory calibration with certificate. (example)
Data interface module
Ethernet module for logging and remote monitoring. (example)
Download
Datasheet, manual.
